Android字体加重过程浅析

aopmeta 11/20/2022 源码

# Android字体加重的窘境

在App的设计稿中UI设计师一般都会使用选择相应的medium字体对字体进行加重而摒弃直接加粗的方式，这对ios开发者来说比较简单，但对Android开发者来说就比较尴尬，Android默认的中文字体，思源黑体并没有包含加重字体，如果简单粗暴的直接加粗又会与设计稿相差较大，至于为什么Android设置了medium字体后只有英文会生效，我们进入源码一探究竟

# 字体的初始化

直接从TextView源码入手

// 找到fontFamily解析位置
case com.android.internal.R.styleable.TextAppearance_fontFamily:
    ...

    // 首次为空，继续查找mFontFamily使用处
    if (attributes.mFontTypeface == null) {
        attributes.mFontFamily = appearance.getString(attr);
    }
    ...
    break;

找到这个方法内部使用了mFontFamily

private void applyTextAppearance(TextAppearanceAttributes attributes) {
    ...
    setTypefaceFromAttrs(attributes.mFontTypeface, attributes.mFontFamily,
            attributes.mTypefaceIndex, attributes.mTextStyle, attributes.mFontWeight);


private void setTypefaceFromAttrs(@Nullable Typeface typeface, @Nullable String familyName,
            @XMLTypefaceAttr int typefaceIndex, @Typeface.Style int style,
            @IntRange(from = -1, to = FontStyle.FONT_WEIGHT_MAX) int weight) {
    if (typeface == null && familyName != null) {
        // 这里创建一个普通样式的字体
        final Typeface normalTypeface = Typeface.create(familyName, Typeface.NORMAL);
        resolveStyleAndSetTypeface(normalTypeface, style, weight);
    }
    ...
}

从系统默认的字体库中查找字体

public static Typeface create(String familyName, @Style int style) {
    return create(getSystemDefaultTypeface(familyName), style);
}

// 继续跟进看看sSystemFontMap是如何初始化的
private static Typeface getSystemDefaultTypeface(@NonNull String familyName) {
    Typeface tf = sSystemFontMap.get(familyName);
    return tf == null ? Typeface.DEFAULT : tf;
}

这里我们忽略懒加载的过程，直接找到这个静态方法，setSystemFontMap方法内部会对sSystemFontMap进行赋值

public static void loadPreinstalledSystemFontMap() {
    final FontConfig fontConfig = SystemFonts.getSystemPreinstalledFontConfig();
    final Map<String, FontFamily[]> fallback = SystemFonts.buildSystemFallback(fontConfig);
    final Map<String, Typeface> typefaceMap =
            SystemFonts.buildSystemTypefaces(fontConfig, fallback);
    setSystemFontMap(typefaceMap);
}

// 重点看下SystemFonts的第一个方法，其中找到字体配置的xml文件
public static @NonNull FontConfig getSystemPreinstalledFontConfig() {
    return getSystemFontConfigInternal(FONTS_XML, SYSTEM_FONT_DIR, OEM_XML, OEM_FONT_DIR, null,
            0, 0);
}

到这里我们搞清楚了系统字体由/system/etc/fonts.xml进行配置，/system/fonts/目录进行字体的存储

private static final String FONTS_XML = "/system/etc/fonts.xml";
public static final String SYSTEM_FONT_DIR = "/system/fonts/";
private static final String OEM_XML = "/product/etc/fonts_customization.xml";
public static final String OEM_FONT_DIR = "/product/fonts/";

# 字体配置

打开fonts.xml

<!-- Roboto作为默认字体 -->
<family name="sans-serif">
    <font weight="100" style="normal">Roboto-Regular.ttf
        <axis tag="ital" stylevalue="0" />
        <axis tag="wdth" stylevalue="100" />
        <axis tag="wght" stylevalue="100" />
    </font>
    <font weight="200" style="normal">Roboto-Regular.ttf
        <axis tag="ital" stylevalue="0" />
        <axis tag="wdth" stylevalue="100" />
        <axis tag="wght" stylevalue="200" />
    </font>
    ...
</family>

可以看到默认字体的所有样式Roboto-Regular.ttf字体都包含了，接着我们找一下中文字体

<family lang="zh-Hans">
    <font weight="400" style="normal" index="2" postScriptName="NotoSansCJKjp-Regular">
        NotoSansCJK-Regular.ttc
    </font>
    <font weight="400" style="normal" index="2" fallbackFor="serif"
            postScriptName="NotoSerifCJKjp-Regular">NotoSerifCJK-Regular.ttc
    </font>
</family>

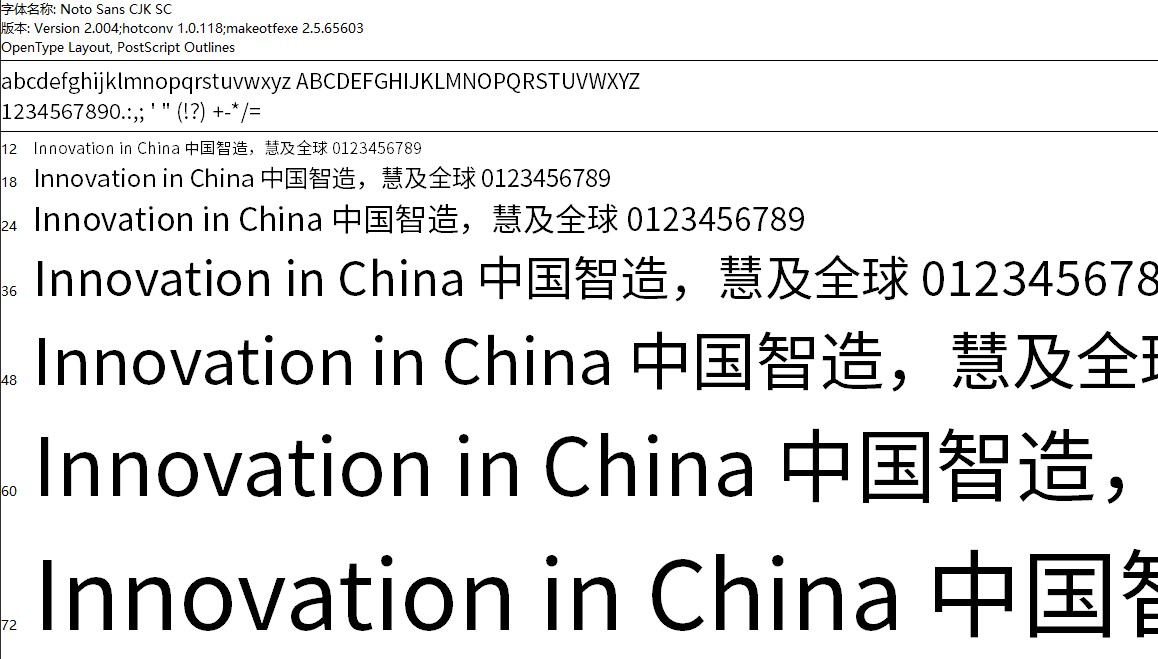

配置文件只配置了一个字重，我们打开字体再看下确实，简体中文只有一个字重

# 国内厂商medium为何生效

前面我们提到Android默认的思源黑体并没有包含加重字体，但在小米华为等国内厂商的手机上却可以正常加重，看了它们的fonts.xml后发现，它们都修改了默认字体，使用了自研的包含有medium加重的中文字体而当我们在这些手机的设置中将默认字体改回思源黑体后发现，加重效果又消失了

<!-- 默认字体已经改为其他字体 -->
<family name="sans-serif">
    <font weight="100" style="normal">HarmonyOS.ttf
        <axis tag="wght" stylevalue="100" />
    </font>
    <font weight="100" style="italic">HarmonyOS-Italic.ttf
        <axis tag="wght" stylevalue="100" />
    </font>
    <font weight="300" style="normal">HarmonyOS.ttf
        <axis tag="wght" stylevalue="247" />
    </font>
    <font weight="300" style="italic">HarmonyOS-Italic.ttf
        <axis tag="wght" stylevalue="247" />
    </font>
    <font weight="400" style="normal">HarmonyOS.ttf
        <axis tag="wght" stylevalue="400" />
    </font>
    <font weight="400" style="italic">HarmonyOS-Italic.ttf
        <axis tag="wght" stylevalue="400" />
    </font>
    <font weight="500" style="normal">HarmonyOS.ttf
        <axis tag="wght" stylevalue="500" />
    </font>
    <font weight="500" style="italic">HarmonyOS-Italic.ttf
        <axis tag="wght" stylevalue="500" />
    </font>
    <font weight="700" style="normal">HarmonyOS.ttf
        <axis tag="wght" stylevalue="706" />
    </font>
    <font weight="700" style="italic">HarmonyOS-Italic.ttf
        <axis tag="wght" stylevalue="700" />
    </font>
    <font weight="900" style="normal">HarmonyOS.ttf
        <axis tag="wght" stylevalue="844" />
    </font>
    <font weight="900" style="italic">HarmonyOS-Italic.ttf
        <axis tag="wght" stylevalue="844" />
    </font>
</family>

<!-- 中文字体也是 -->
<family lang="zh-Hans">
    <font weight="100" style="normal">HarmonyOSHans.ttf
        <axis tag="wght" stylevalue="100" />
    </font>

# 加粗过程浅析

我们继续看下blob加粗的关键细节仍然从TextView入手

// blob被存入mTextStyle中
case com.android.internal.R.styleable.TextAppearance_textStyle:
    attributes.mTextStyle = appearance.getInt(attr, attributes.mTextStyle);

继续跟进mTextStyle，进入setTypefaceFromAttrs方法

private void setTypefaceFromAttrs(@Nullable Typeface typeface, @Nullable String familyName,
        @XMLTypefaceAttr int typefaceIndex, @Typeface.Style int style,
        @IntRange(from = -1, to = FontStyle.FONT_WEIGHT_MAX) int weight) {
    if (typeface == null && familyName != null) {
        // 上面已经提到过会走这里，weight此时为-1
        final Typeface normalTypeface = Typeface.create(familyName, Typeface.NORMAL);
        resolveStyleAndSetTypeface(normalTypeface, style, weight);
    }
    ...
}

继续进入resolveStyleAndSetTypeface方法

private void resolveStyleAndSetTypeface(@NonNull Typeface typeface, @Typeface.Style int style,
        @IntRange(from = -1, to = FontStyle.FONT_WEIGHT_MAX) int weight) {
    if (weight >= 0) {
        ...
    } else {
        // 走这里
        setTypeface(typeface, style);
    }
}

public void setTypeface(@Nullable Typeface tf, @Typeface.Style int style) {
    if (style > 0) {
        if (tf == null) {
            tf = Typeface.defaultFromStyle(style);
        } else {
            // 此时重新根据style创建新的字体了
            tf = Typeface.create(tf, style);
        }

        setTypeface(tf);
        int need = style & ~typefaceStyle;
        //textPaint的FakeBoldText也会被设置为true
        mTextPaint.setFakeBoldText((need & Typeface.BOLD) != 0);
    }
}

public static Typeface create(Typeface family, @Style int style) {
    ...
    Typeface typeface;
    synchronized (sStyledCacheLock) {
        ...
        //最终调用jni层的nativeCreateFromTypeface方法来创建
        typeface = new Typeface(nativeCreateFromTypeface(ni, style));
        styles.put(style, typeface);
    }
    return typeface;
}

我们继续跟进Typeface.cpp文件

// 实际的函数名为Typeface_createFromTypeface
static const JNINativeMethod gTypefaceMethods[] = {
        {"nativeCreateFromTypeface", "(JI)J", (void*)Typeface_createFromTypeface},


static jlong Typeface_createFromTypeface(JNIEnv* env, jobject, jlong familyHandle, jint style) {
    Typeface* family = toTypeface(familyHandle);
    // 调用createRelative方法
    Typeface* face = Typeface::createRelative(family, (Typeface::Style)style);
    ...
}

Typeface* Typeface::createRelative(Typeface* src, Typeface::Style style) {
    const Typeface* resolvedFace = Typeface::resolveDefault(src);
    Typeface* result = new Typeface;
    if (result != nullptr) {
        result->fFontCollection = resolvedFace->fFontCollection;
        result->fBaseWeight = resolvedFace->fBaseWeight;
        result->fAPIStyle = style;
        // style重新计算
        result->fStyle = computeRelativeStyle(result->fBaseWeight, style);
    }
    return result;
}

static minikin::FontStyle computeRelativeStyle(int baseWeight, Typeface::Style relativeStyle) {
    int weight = baseWeight;
    // 最终我们得知当style包含blob时，weight加上300，weight默认是400，blob其实就是使用的weight为700的字体
    if ((relativeStyle & Typeface::kBold) != 0) {
        weight += 300;
    }
    bool italic = (relativeStyle & Typeface::kItalic) != 0;
    return computeMinikinStyle(weight, italic);
}
